ULTRAVIOLET GERMICIDAL IRRADIATION [UVGI]



UVGI LEO-1

Portable UVGI system for on going high level disinfection of contaminated surfaces and airborne pathogens. Highly suitable for routine IAQ maintenance management.

  • Model: LEO-1
  • Lightwave: UV-C primarily in the 253.7nm wavelength
  • Power: AC220-230V, 50Hz
  • UV intensity: 170 µW/cm
  • Bulb lifespan: 8 000 operational hours
  • Ballast lifespan: 20 000 operational hours
  • Bulb length: 21”
  • Power of bulb: 55 watts
  • Includes a timer setting + remote control
  • Ozone option available

DOWNLOAD BROCHURE



UVGI LEO-2



Wall-mounted UVGI high lamps that generates a field germicidal energy in the upper air spaces of high risk areas. Highly suitable for corrective IAQ maintenance management.
  • Model: LEO-2
  • Lightwave: UV-C primarily in the 253.7nm wavelength
  • Power: AC220-230V, 50Hz
  • UV intensity: 65 µW/cm
  • Bulb lifespan: 8 000 operational hours
  • Ballast lifespan: 30 000 operational hours
  • Bulb length: 23”
  • Power of bulb: 20 watts
  • Stainless Steel Housing
  • Ozone option available
DOWNLOAD BROCHURE

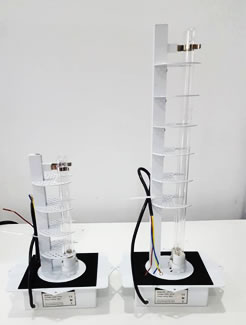

UVGI LEO-3

Installed within HVAC systems to target airborne pathogens channelled through the ducting systems. Also reduces contamination on the A/C coil to reduce a build up of microbial contamination and this invariably reduces energy consumption. Highly effective as a tool for preventive maintenance management.

  • Model: LEO-3
  • Lightwave: UV-C primarily in the 253.7nm wavelength
  • Power: AC220-230V, 50Hz
  • UV intensity: 85 µW/cm
  • Bulb lifespan: 8 000 operational hours
  • Ballast lifespan: 30 000 operational hours
  • Bulb length: 21.5”
  • Power of bulb: 28 watts
  • Metal Housing
  • SM 1152 with Nano TiO2 coating

DOWNLOAD BROCHURE



UVGI OPTIMAX 40-C

Ceiling-mounted UVGI high lamps that generates a field germicidal energy in the upper air spaces of high risk areas. Highly suitable for corrective IAQ maintenance management.

  • Model: Optimax 40C
  • Lightwave: UV-C primarily in the 253.7nm wavelength
  • Power: AC220-230V, 50Hz
  • UV intensity: 136 µW/cm
  • Bulb lifespan: 8 000 operational hours
  • Ballast lifespan: 30 000 operational hours
  • Bulb length: 23”
  • Power of bulb: 3 pieces of 40 watts UVC quartz lamps
  • LED indicates the working status of each UVC lamps
  • Metal Housing
  • SM 1152 with Nano TiO2 coating

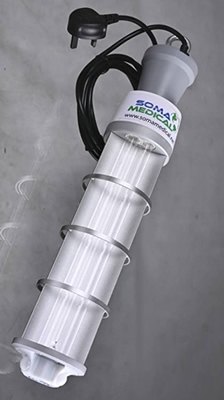

UVGI AIR STERILIZER LEO-5

UVGI LEO 5 Air Sterilizers are designed for effective action in environments up to 125 cubic meters (roughly corresponding to a base area of 45 square meters).

For larger spaces it may be appropriate to install more units equally distributed in the environment.

The ultraviolet light (UV-C) working at 222.0 nm emitted by the lamp eliminates bacteria, viruses, spores, molds and any other micro-organism in the air.

Suitable for disinfection of indoor places such as medical institutions, schools, offices, commercial products and industry.

  • Model: UVGI LEO-5
  • Operating Temperature: -10~+35 Celcius
  • Sensor Detection Range: 360 degress
  • Sensor Detection Distance: 0-5 meters
  • Remote control distance: 10 meter



DOWNLOAD BROCHURE

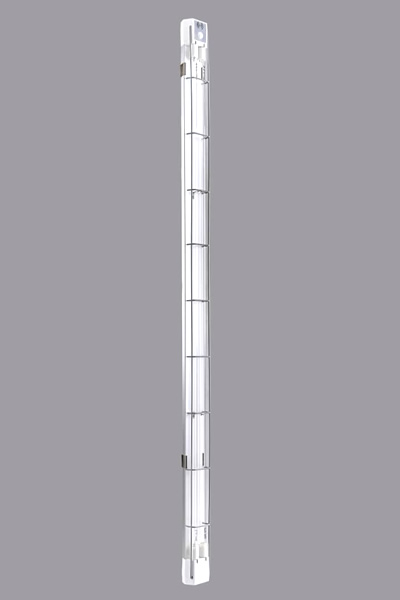

UVGI AIR STERILIZER LEO-5-F

UVGI LEO 5-F Air Sterilizers are designed for effective action in environments up to eliminates bacteria, viruses, spores, molds and any other micro-organism present in the air.

It's comes with a sensor distance up to 5 meters (16.4 ft).

The product is suitable for disinfection of indoor places such as medical institutions, schools, offices, household use and others.

Effective in the prevention of Tuberculosis, MRSA,H1N1 and other airborne cross contamination.

  • Model: UVGI LEO-5-F
  • Operating Temperature: -10~+35 Celcius
  • Sensor Detection Range: 360 degress
  • Sensor Detection Distance: 0-5 meters
  • Comes with remote control



DOWNLOAD BROCHURE

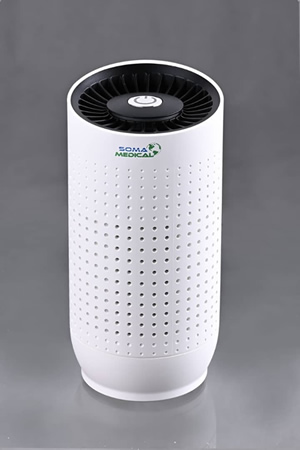

SM-13 MINI AIR STERILIZER

  • Model: SM-13 Mini Air Sterilizer
  • Filter Element: H13
  • Power: 3.5W
  • Material: ABS
  • Air Volume: 3 Gears



DOWNLOAD BROCHURE
ENVIRONMENTAL CONTROL FOR TUBERCULOSIS: BASIC UPPER-ROOM ULTRAVIOLET GERMICIDAL IRRADIATION GUIDELINES FOR HEALTHCARE SETTINGS

Tuberculosis (TB) is a severe, contagious disease that primarily affects the lungs. It is usually transmitted from person to person via airborne particles that contain TB bacteria. ne of the major concerns for healthcare workers is the potential for transmission of TB at worksites from undiagnosed or unsuspected cases. Upper-room ultraviolet germicidal irradiation (UVGI) systems are considered a supplement or adjunct to other TB
infection-control measures (e.g., ventilation) in settings where persons with undiagnosed TB could potentially contaminate the air (e.g., waiting rooms, emergency rooms, corridors, central areas).

Read more about this here!
